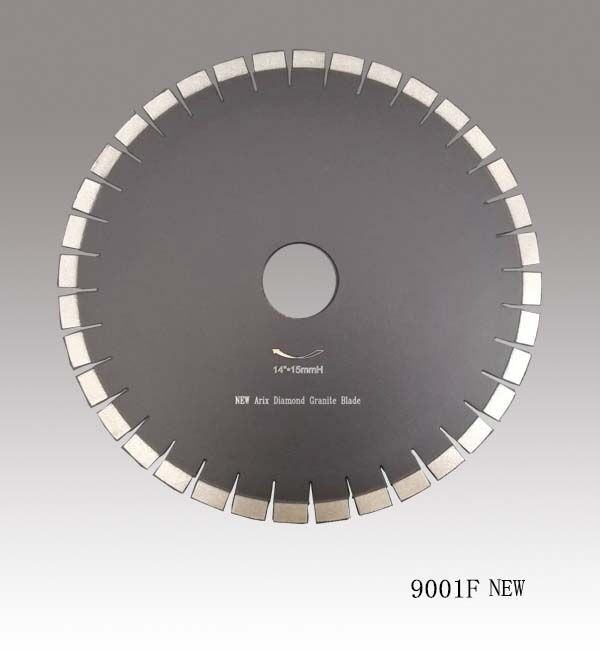

Short Tooth Arix Diamond Granite Blade
Item No. : 9001F

Description

Short Tooth Arix Diamond Granite Blade
Feature :

1. Item No. : 9001F
2. Fasting Cutting : Short Tooth Arix Diamond Granite Blade can use 5.5 meters/minute to cut 3cm hard granite slab; the speed is even 210% faster than normal blade.
3. Low Noise: Short Tooth Arix Diamond Granite Blade has 0.5-2.5DB lower than traditional blades.
4. No Chipping: Short Tooth Arix Diamond Granite Blade will not cause chipping at all because diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: Short Tooth Arix Diamond Granite Blade guarantees consistent performance throughout the cutting process.

Item No.	Dia.	Segment Thickness (mm)	Height (mm)	Hole (mm)	Segment No.
9001F012	12"(300mm)	3.0	15/20	50/60	30
9001F014	14"(350mm)	3.2	15/20	50/60	36
9001F016	16"(400mm)	3.5	15/20	50/60	42
9001F018	18"(450mm)	4.0	15/20	50/60	50
9001F020	20"(500mm)	4.0	15/20	50/60	52
9001F024	24"(600mm)	4.5	15/20	50/60/80	62
