Feature:

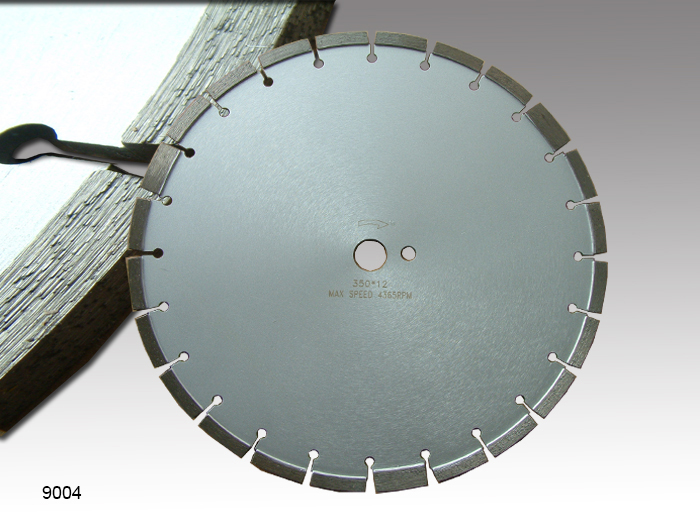

1. Item No.:9004.
2. For cured & reinforced concrete, green concrete, asphalt, hard brick, hard concrete wall, brick wall, etc.
3. Different hardness designs of bonds are for different kinds of cured or reinforced concrete with fast speed and long life.
4. Silent and Non-silent are available.
|
Item No. |
Diameter |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9002012 |
12"(300mm) |
3.0 |
10 |
20/25.4 |
21 |
|
9002014 |
14"(350mm) |
3.2 |
10 |
20/25.4 |
24 |
|
9002016 |
16"(400mm) |
3.4 |
10 |
20/25.4 |
28 |
|
9002018 |
18"(450mm) |
4.0 |
10 |
20/25.4 |
32 |
|
9002020 |
20"(500mm) |
4.5 |
10 |
20/25.4 |
36 |
|
9002022 |
22"(550mm) |
4.5 |
10 |
20/25.4 |
42 |
|
9002024 |
24"(600mm) |
4.5 |
10 |
20/25.4 |
42 |
|
9002028 |
28"(700mm) |
4.8 |
10 |
20/25.4 |
46 |
|
9002030 |
30"(750mm) |
4.8 |
10 |
20/25.4 |
50 |
|
9002032 |
32"(800mm) |
4.8 |
10 |
20/25.4 |
54 |
|
9002036 |
36"(900mm) |
4.8 |
10 |
20/25.4 |
60 |
|
9002040 |
40"(1000mm) |
5.5 |
10 |
20/25.4 |
64 |
|
9002048 |
48"(1200mm) |
5.5 |
10 |
20/25.4 |
58 |
