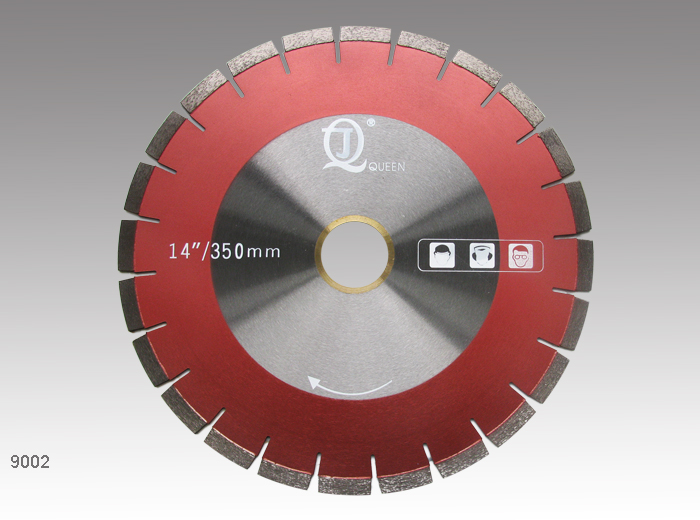

Granite Diamond Blade
Feature:
1. Item No.: 9002.
2. Segmented saw blade is for all kinds of nature granite stones by wet cutting with fast speed and long life.
3. No chipping on guarantee.
4. Silent and Non-silent cores are available.
|
Item No. |
Diameter |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9002012 |
12"(300mm) |
2.8 |
13/15/20 |
50/60 |
21 |
|
9002014 |
14"(350mm) |
3.2 |
13/15/20 |
50/60 |
24 |
|
9002016 |
16"(400mm) |
3.5 |
13/15/20 |
50/60 |
28 |
|
9002018 |
18"(450mm) |
4.0 |
13/15/20 |
50/60 |
32 |
|
9002020 |
20"(500mm) |
4.2 |
13/15/20 |
50/60 |
36 |
|
9002022 |
22"(550mm) |
4.6 |
13/15/20 |
50/60 |
42 |
|
9002024 |
24"(600mm) |
4.6 |
13/15/20 |
50/60/80 |
42 |
|
9002028 |
28"(700mm) |
5.0 |
13/15/20 |
50/60/80 |
50 |
|
9002030 |
30"(750mm) |
5.2 |
13/15/20 |
50/60/80 |
54 |
|
9002032 |
32"(800mm) |
5.5 |
13/15/20 |
50/60/80/100 |
57 |
|
9002036 |
36"(900mm) |
7.5 |
13/15/20 |
50/60/80/100 |
64 |
|
9002040 |
40"(1000mm) |
7.5 |
13/15/20 |
50/60/80/100 |
70 |
|
9002048 |
48"(1200mm) |
8.0 |
13/15/20 |
50/60/80/100 |
80 |
|
9002052 |
52"(1300mm) |
8.0 |
13/15/20 |
50/60/80/100 |
88 |
|
9002056 |
56"(1400mm) |
8.2 |
13/15/20 |
50/60/80/100 |
94 |
|
9002064 |
64"(1600mm) |
9.0 |
13/15/20 |
50/60/80/100 |
108 |
|
9002072 |
72"(1800mm) |
9.5 |
13/15/20 |
50/60/80/100 |
120 |
