1. Item No.: 9101-01.
2. CNC profile wheels have developed the outstanding sets of profiling wheels for CNC machine.
3. For profiling granite, marble and engineered stone.
4. We have eight positions profile wheels for difference kinds of needs.
5. Equipped on CNC machines. Arbor size is 22mm or 35mm.
6. Regular shapes can be ordered normally. Irregular shapes can be also produced
|
Position |
Description |
Grit |
Working Procedure |
RPM |
|
1 |

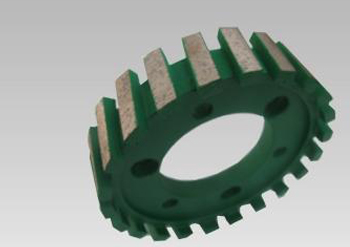

Metal bond, sintered diamond segmented wheel |
40/50# |
Molding |
4500-5000 |
|
2 |
Metal bond, sintered diamond continuous wheel |
70/80# |
Shaping |
4500-5000 |
|
3 |
Metal bond, sintered diamond continuous wheel |
150/170# |
Rub-down |
4500-5000 |
|
4 |
Metal bond, sintered diamond continuous wheel |
200/230# |
Rub-down |
4500-5000 |
|
5 |
Resin bond continuous rim wheel |
400# |
Finishing |
4500-5000 |
|
6 |
Resin bond continuous rim wheel |
800# |
Pre-finishing |
4500-5000 |
|
7 |
Resin bond continuous rim wheel |
1500# |
Polishing |
4500-5000 |
|
8 |
Resin bond continuous rim wheel |
3000# |
Fine |
4500-5000 |
We have normal regular shapes; please refer to the following for more details.
|
Item No. |
Shape |
Thickness(mm) |
Position |
Arbor size(mm) |
|
9101A20001 |
A |
20 |
1 |
22,35 |
|
9101A20002 |
A |
20 |
2 |
22,35 |
|
9101A20003 |
A |
20 |
3 |
22,35 |
|
9101A20004 |
A |
20 |
4 |
22,35 |
|
9101A20005 |
A |
20 |
5 |
22,35 |
|
9101A20006 |
A |
20 |
6 |
22,35 |
|
9101A20007 |
A |
20 |
7 |
22,35 |
|
9101A20008 |
A |
20 |
8 |
22,35 |
