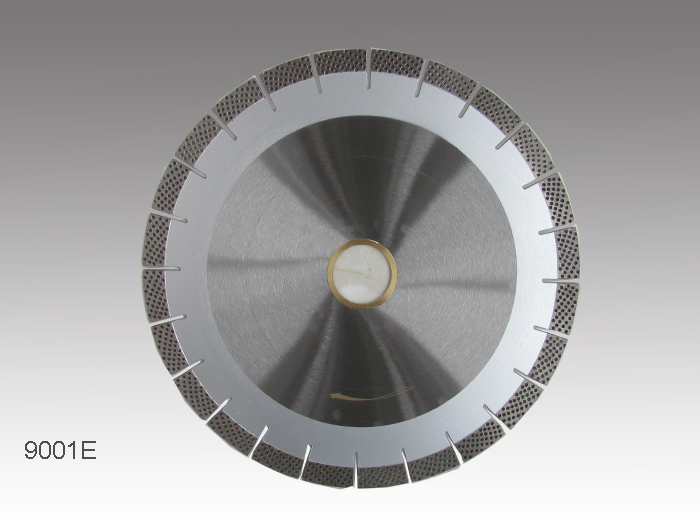

Holes Diamond Saw Blade
Feature:
1. Item No.: 9001E
2. Fasting Cutting. Holes design helps to have fast cutting and it is easier for water and stone debris coming out.
3. Segment height is 15mm or 20mm available. Most North American customers like this type of blades.
4. No Chipping: Holes Diamond Saw Blade will not cause chipping at all because diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: It guarantees consistent performance throughout the cutting process.
|
Item No. |
Dia. |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9001E012 |
12"(300mm) |
2.8 |
15/20 |
50/60 |
21 |
|
9001E014 |
14"(350mm) |
3.2 |
15/20 |
50/60 |
24 |
|
9001E016 |
16"(400mm) |
3.5 |
15/20 |
50/60 |
28 |
|
9001E018 |
18"(450mm) |
4.0 |
15/20 |
50/60 |
32 |
|
9001E020 |
20"(500mm) |
4.2 |
15/20 |
50/60 |
36 |
|
9001E022 |
22"(550mm) |
4.6 |
15/20 |
50/60 |
42 |
|
9001E024 |
24"(600mm) |
4.6 |
15/20 |
50/60/80 |
42 |
|
9001E028 |
28"(700mm) |
5.0 |
15/20 |
50/60/80 |
50 |
|
9001E030 |
30"(750mm) |
5.2 |
15/20 |
50/60/80 |
54 |
|
9001E032 |
32"(800mm) |
5.5 |
15/20 |
50/60/80/100 |
57 |
